Show heading of line (or between two points)

Andreas Woithon shared this problem 3 months ago
Not a Problem

Referring to topic: http://help.locusmap.eu/topic/draw_a_line_with_a_distance_and_a_bearing and that comment from Menion ( http://help.locusmap.eu/topic/draw_a_line_with_a_distance_and_a_bearing#comment-4700 ).

I tried that

with the route editor. When I create the first point and then the second

one, only the distance is shown, not the heading. Then I create the

second point. When I try to move the second point, to get the heading no heading is shown. Yes, I have enabled to

display distance and heading above and under the line in the settings.

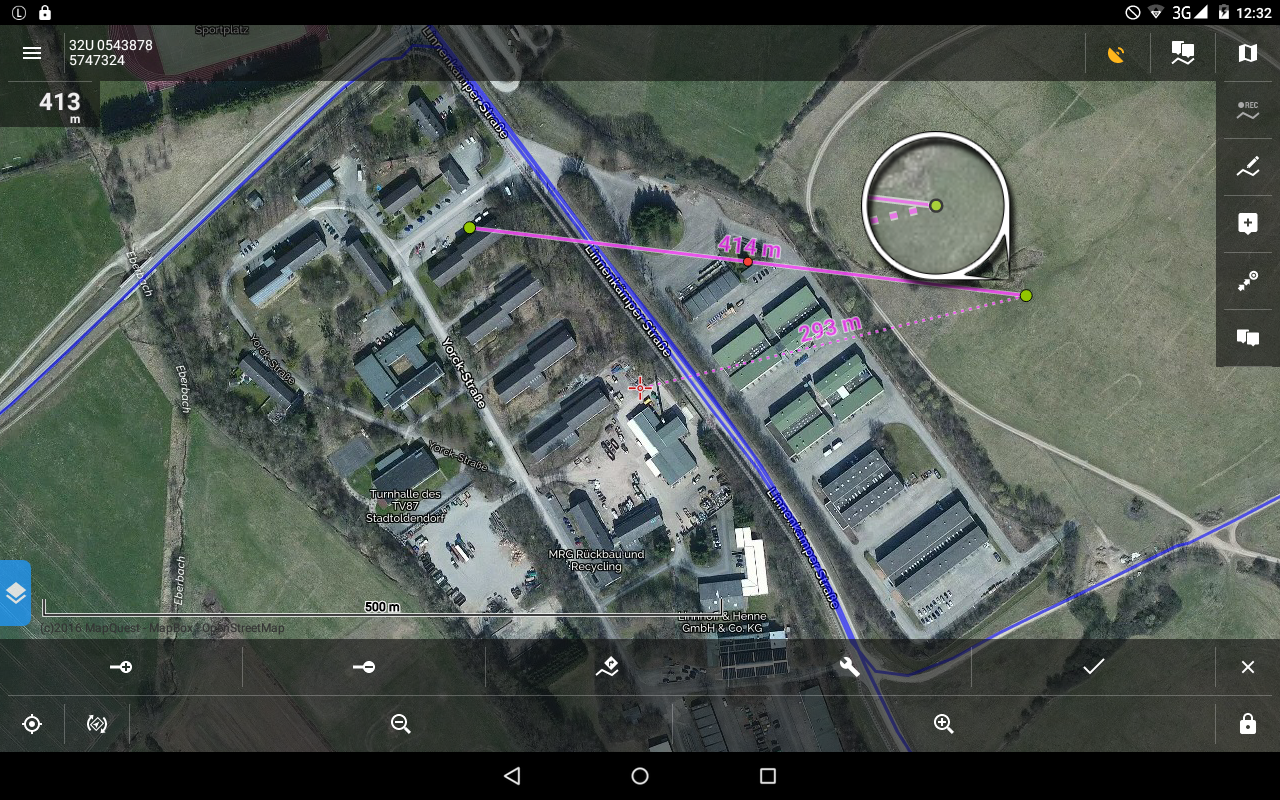

See attached screenshot.

Any help? I need to see the heading from a given point to another point.

Cheers

AWo

Comments (8)

3

Hello Andreas

in locus folder you will find file config.cfg

open it e.g. with Notepad and modify value(s):

# values above/below lines: nothing: '0', distance: '1', bearing: '2', ETA: '3', elevation: '4', time to: '5', ETA & time to: '6'


# value visible above/below lines, when you "select line" on map. Types in file header

map_items_selection_line_value_above=1

map_items_selection_line_value_below=2


save your changes and restart locus


Wolfgang

1

\o/


Yeahh, hit, target destroyed.


Thanks a lot!


Cheers

AWo

1

Thanks Wolfgang, you were faster than me, again :)

1

Is taht a setting you need to do in any version of Locus or is that just because my version resides already for a long time on my device, going from update to update?


In other words, is that setting standard, now?


Cheers

AWo

1

No, the setting is not standard. And the config file is updated upon Locus update too.

1

Do I need it to set it again after each update?


Cheers

AWo

1

nope, values are not changed upon update

1

Thanks. Quick and good help as usual.


Cheers

AWo
