Is it possibile to export an elevation profile to PNG or another graphical format?

Adam Sędziwy shared this question 6 years ago
Answered

As in title

Replies (8)

1

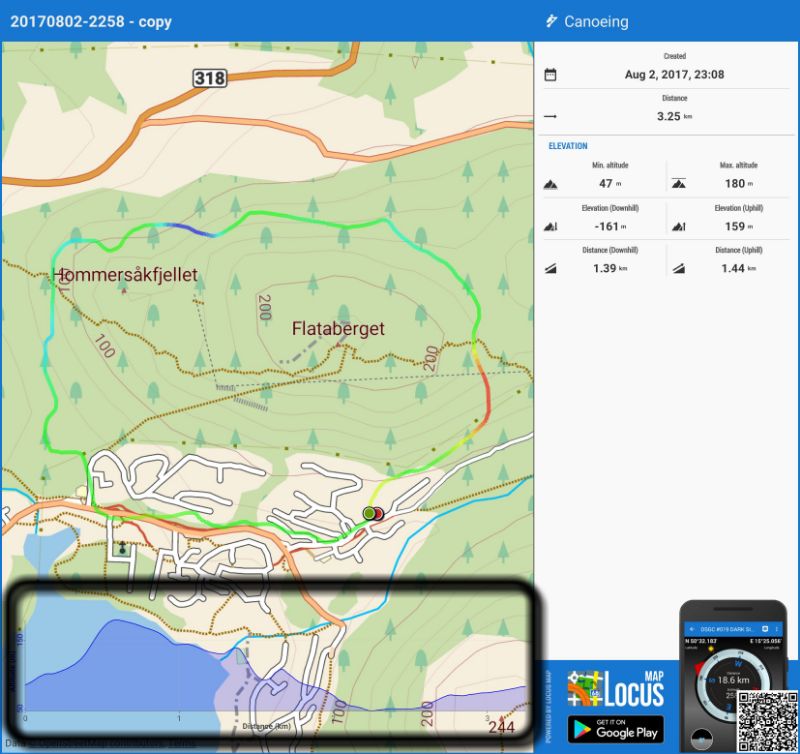

Maybe not exactly what you're after but you can open track details - share - track overview..

See attachment

1

Well, I know that. Anyway, my problem is that I've a huge gpx track (approx. 30MB, covering the 600km trail), so an image being generated on the screen has a very poor resolution.

1

export your track.gpx

and upload it to

https://gpxviz.sisao.de/

right click on profile > save as

1

It seems that both gpxviz and gpxviz2 are unable to handle my 28MB gpx file: the track is uploaded correctly (presumably- analyzing my laptop's data transfer summary) but they hang when generating the profile.

1

Back again here. I've tried the above link and got the following conclusions:

1) It's the client-side utility (I've found this analyzing the uploaded data volume) - namely, all work is made by some web browser-build JavaScript interpreter

2) It works well for medium size files (e.g., 2MB)

3) Nothing happens for 29 MB gpx track :(

1

Yeah, it looks to be a fix I was looking for :D

I'll try and report. Anyway, thanks a lot!

1

with RouteConverter you can also save the displayed chart

https://www.routeconverter.com/home/en

example:

4c56f60dcf3714d77afdea537e54d670

1

Finally I solved the problem myself. Below I attach the Python script for shrinking gpx as the web services weren't capable of doing it (my gpx file was to large). Once a slimmed file is ready one can plot a profile using any tool.


import gpxpy
gpx_file = open('gsb_2017_track.gpx', 'r')
gpx = gpxpy.parse(gpx_file)

for track in gpx.tracks:
    for segment in track.segments:
        segment.reduce_points(50)
# 50 = minimal spacing (in meters) between two subsequent points. Chane if needed

text_file = open("shrinked.gpx", 'wb')
text_file.write(gpx.to_xml().encode('utf-8'))
text_file.close()
