South Pole Maps

Luke H shared this question ago

Answered

Hello, i'm currently living at the South Pole station, and I'm trying to get a background map for Locus. Locus works fairly well at pole surprisingly, but there's obviously no maps. Even the Antarctica map doesn't work here. My goal is to take some aerial imagery and manually make a map based on known coordinates.
Any help would be greatly appreciated, thanks!

The same question

Replies (5)

Henk van der Spek ●

Interesting. Would that be on Ross Island?

https://en.wikipedia.org/wiki/Amundsen–Scott_South_Pole_Station#/media/File:Antarctica_Station_South_Pole_Amundsen-Scott.png

Open straat map shows some backgroud: https://www.openstreetmap.org/search?query=-77.4498027673965%2C 166.82649580543244#map=7/-77.632/167.761

As well as Google Maps on satellite view:

https://www.google.com/maps/@-75.9687795,164.5296789,801662m/data=!3m1!1e3!5m1!1e4

URL

Luke H ●

Not Ross Island (that's McMurdo). I'm at Pole (90° South).

URL

Michael Bechtold ●

If it's that one: https://en.wikipedia.org/wiki/Amundsen–Scott_South_Pole_Station, then there is no projection that I know which could cover the S/N poles.

You could do a brute force approach, though: "map" the South Pole area to an empty space in the Pacific, e.g. That however (by the tools that I am aware of), would need some crafting:

Turn the aerials into 256x256 tiles. The structure has the folder names representing the LON, while the png (or jpg) file names stand for the LAT.

LON can stay as it is, it's the LAT that need the transformation. A tool like MOBAC then can produce an (overlay) tile map.

So, the first question is: what is your control and tooling around the aerials ?

Cheers

Michael

PS: I'd be curious to learn about other tools that could do the trick :-)

URL

Luke H ●

I have an ISS photo of the base from almost perfectly vertical I was hoping to manually map using known coordinates of various features. I figured with 3 known feature - coordinate pairs I could overlay any picture onto a map. I thought Locus had a feature like this, no? I'll check out MOBAC.
Thanks for the support

URL

Luke H ●

Of course it doesn't help that everything here moves 4ft a year... gotta love living on 9000ft of ice...

URL

Henk van der Spek ●

Locus can do this.

https://docs.locusmap.eu/doku.php?id=manual:user_guide:maps_tools:calibrator&s[]=calibrated

URL

Luke H ●

ah perfect, I was looking for this feature. Thank you

URL

Petr Voldan ●

Hi Luke,

well, there are no maps because the default Locus offline LoMaps are not technically able to work >85 degrees (due to Mercator projection limitations).
The only option is so-called Orux Sqlite format that can work in arbitrary projection. But honestly, I'm not sure if there is any South Pole map available in this map format.
I'm sorry but I can't offer any simple or quick solution for you.

EDIT:
what you need to create a map in Orux Sqlite format ideally in EPSG:3031 https://epsg.io/3031 There should be a desktop app called OruxMapsDesktop that may be used for the generation of the map in the mentioned format from raster GeoTIFF data. https://www.youtube.com/watch?v=2GETAomyBT4&ab_channel=ONFInternational
Honestly, I'm not familiar with it ...

Thanks for understanding
Petr

URL

Luke H ●

We use Grid North down here (and near the North Pole), defined by the Prime Meridian as "North". It would be really nice if that was an option on Google Earth or Locus, but I get that there aren't many of us that care. Oh well, I'll see what I can do.

URL

VSA ●

For Locus exist only World map

https://www.openandromaps.org/en/downloads/general-maps

Direct download link (12GB):

https://ftp.gwdg.de/pub/misc/openstreetmap/openandromaps/world/OAM-World-1-11-J80.mbtiles

-------------------------

For web browser:

https://www.add.scar.org/

URL

Petr Voldan ●

Thanks for the link, but this map cannot cover the South Pole (by definition).. because Mercator projection where poles are not defined.

URL

Luke H ●

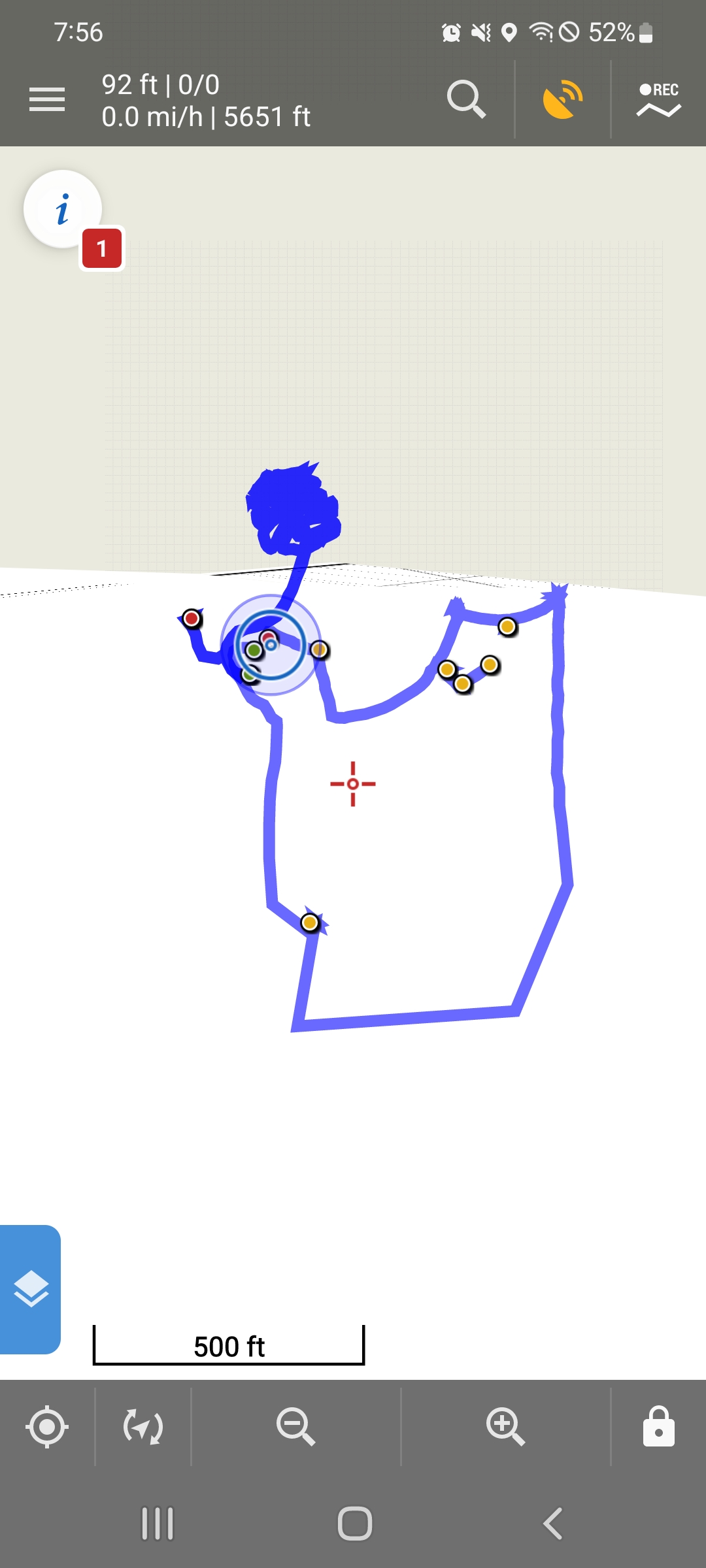

Yes as Petr mentioned the issue is there's no way in Locus to use grid coordinates or for a map to go "past South". Here's what it looks like walking around the South Pole with a map image that's been 4 point calibrated.

Files:
