RTK FIX, cannot show height data

qkfgo3351 shared this problem 10 months ago
Solved

Hi. I use Locusmap V4.15.2 now.

at RTK FIX status , cannot show height data and can not display current location.

I use RTK GPS with Locus Map and Locus GIS.

Single and Floate stauts has no problem. but, only RTK FIX status has error.

I will attach nmea Data. Please test it.

* I am not useLocus map ntrip function. because it can not support in S.Korea.


Files: new.txt

Replies (8)

1

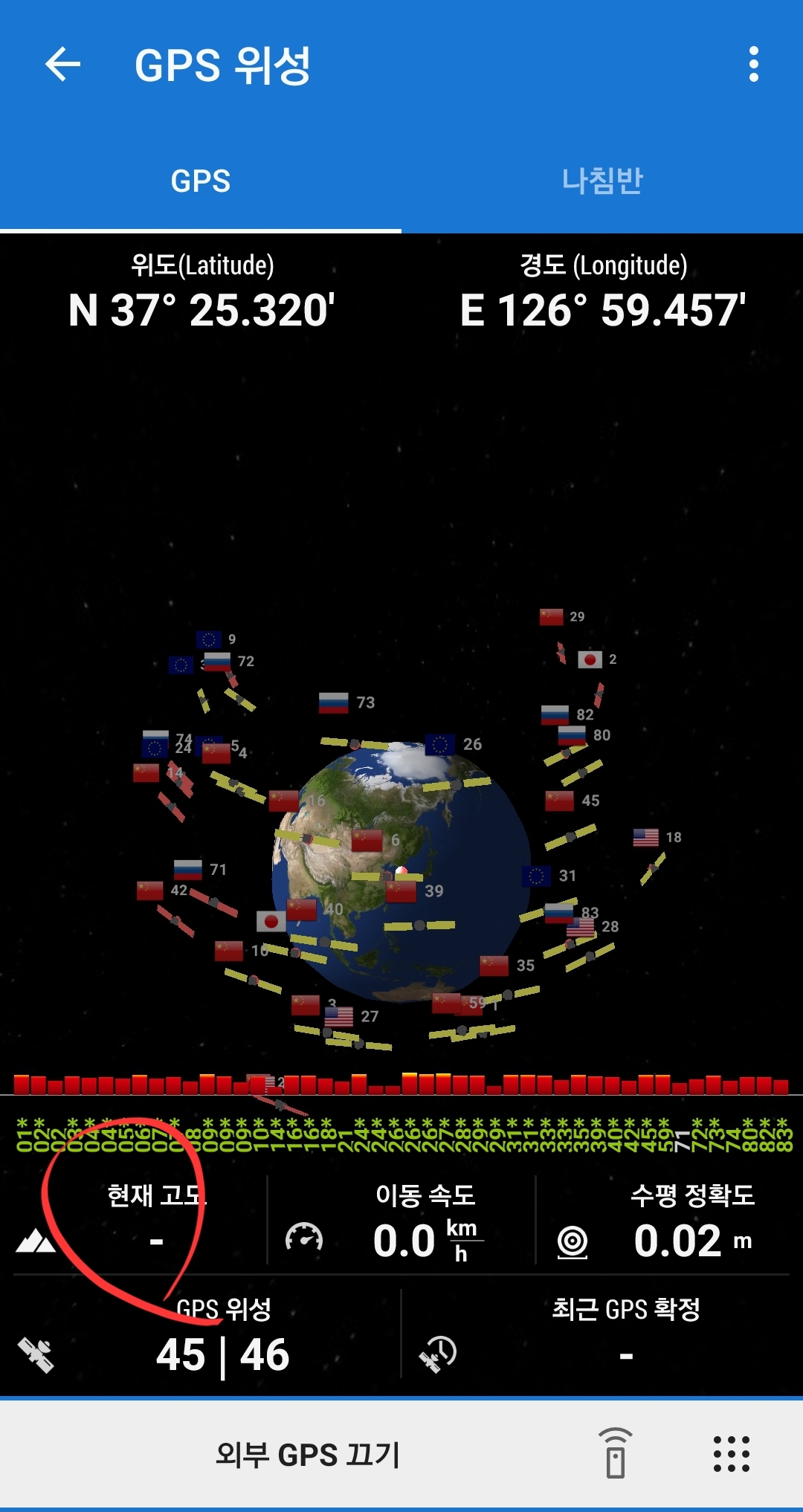

attach screen shot.

1

Hello,

thanks for the NMEA message! It shows interesting behavior in the RMC message. On the second position should be status and based on specification should be "A" or "V" values. In your case, there is a "D" value and this causes a problem.

I'm searching some online docs and can't find any other option then mentioned two letters (as wrote here for example).

I've added a "D" as another valid value, same as "A", but it is kind of "unconfirmed" fix.

1

Thank you for your fast reply. I will ask to Manufacture.

1

Thank will be amazing, thanks too!

1

When can I test updated version?

I want test ASAP.

Many Korean users wait this update.

1

Hello,

I've forget to inform you about beta versions meanwhile, sorry. Actually, there is a new version on the Google Play, so try this version. Because new version is published only for limited number of users, it may also be manually downloaded and instaled from our Google Drive here.

Hope, it will work correctly.

1

Hello.

O.K It wors well. Thank you very much.

1

Perfect, thanks for the confirmation!
