Add Bearing to Quick measurement

Hans Söderholm shared this idea 7 years ago
Completed

Sometimes you want to know the bearing on a map (especially at sea). If bearing is added to the popular Quick measurement line we suddenly would get a very useful tool.

Cheers Zailor

Replies (4)

3

Hello Hans

one bearing value (from>to) is possible if you modify "value_below" in config.cfg once


# values above/below lines: nothing: '0', distance: '1', bearing: '2', ETA: '3', elevation: '4', time to: '5', ETA & time to: '6'


  1. # value visible above/below lines, when you "select line" on map. Types in file header

    map_items_selection_line_value_above=1

    map_items_selection_line_value_below=2


Wolfgang

1

Thanks, Wolfgang! You've opened my eyes to "config.cfg".

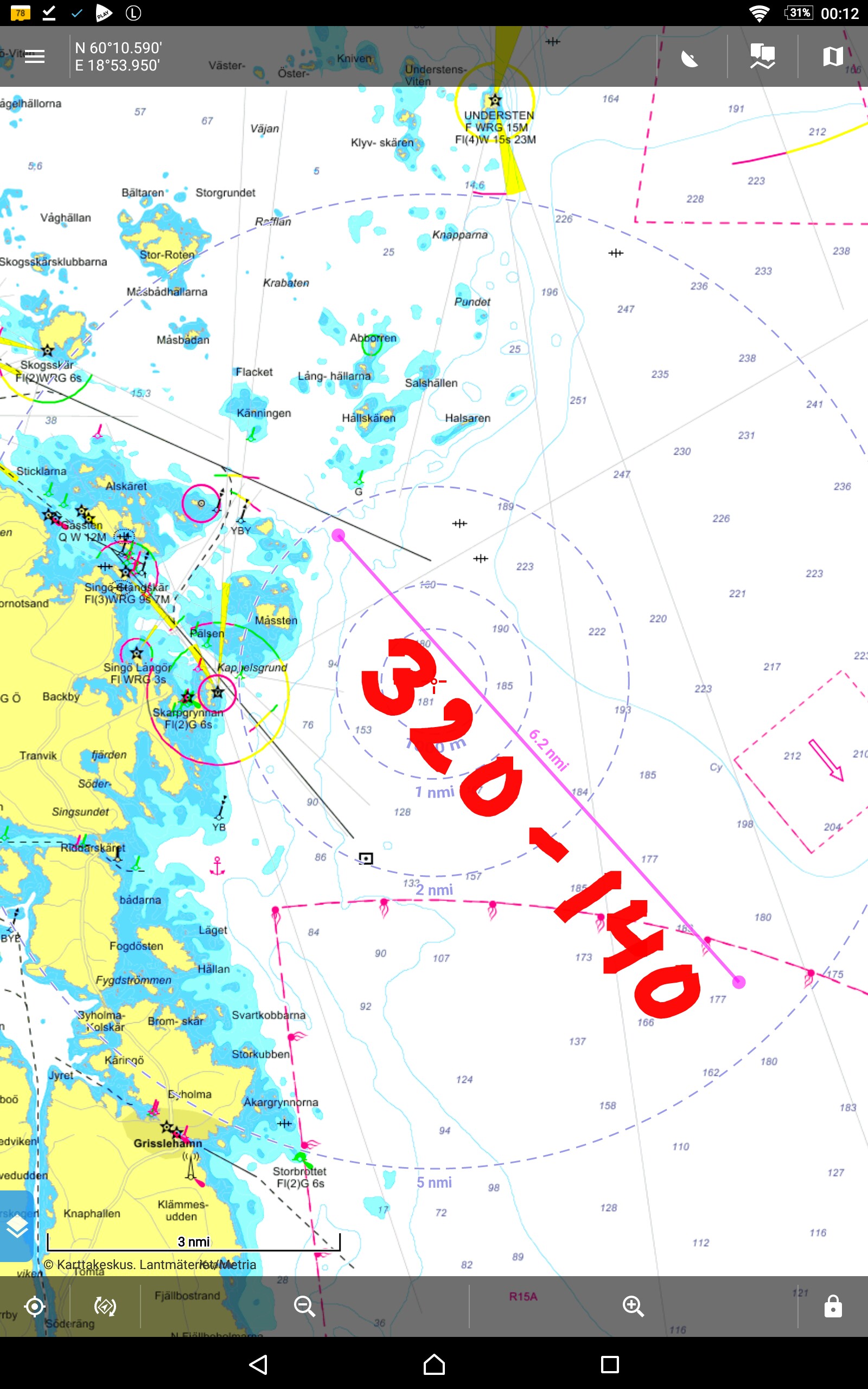

Here is how your modification appears for Quick Measurement. Looks good!

1dde787c98ccbb459fc5bee33c1a8ed4

1

Yes Wolfgang, finally I found it in the config file

Thanks

/Zailor

1

Thanks balloni!! and I'm glad guys, that it works fine for You.
