Display of names of imported points

Aleksandr shared this problem 4 years ago
Solved

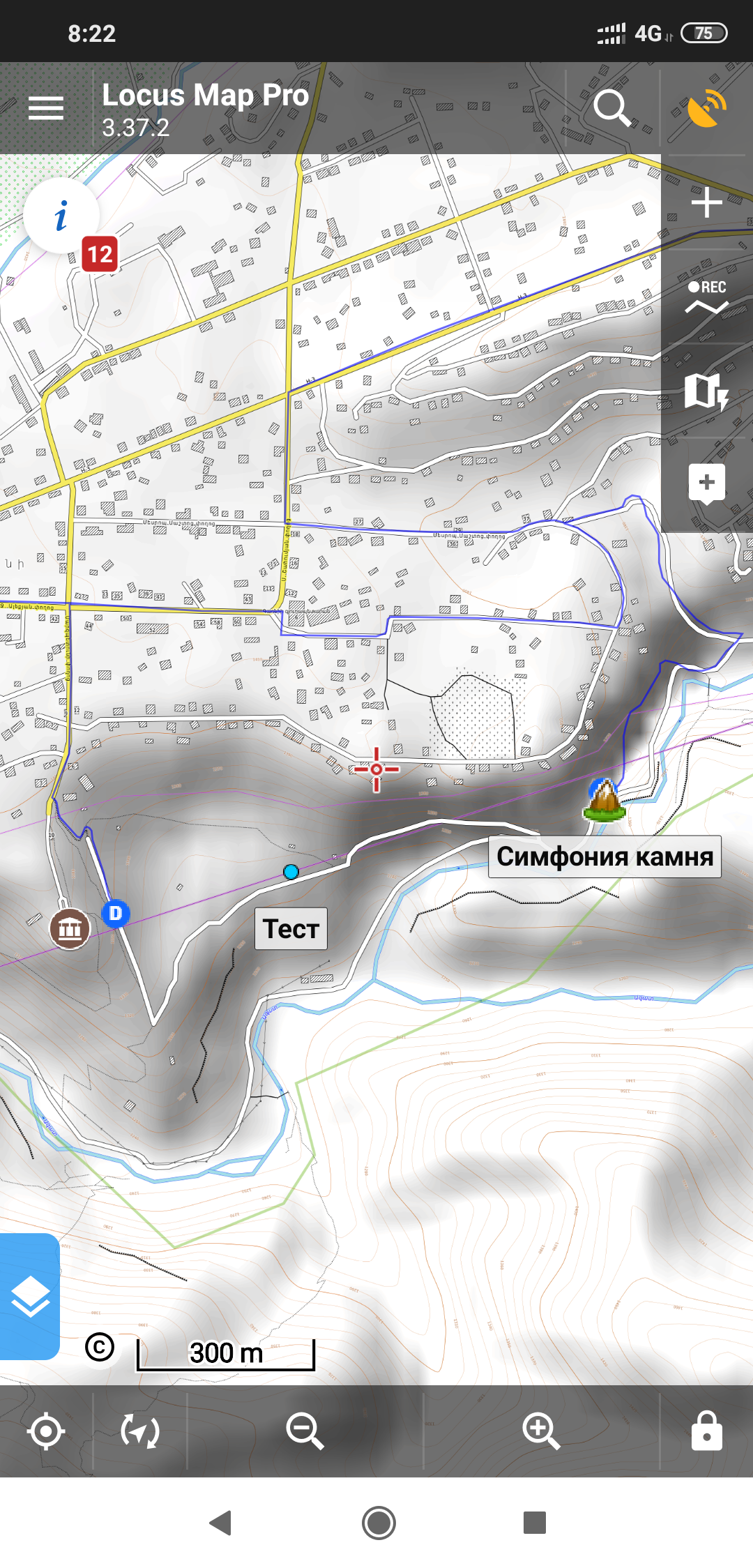

Hello. I created a folder for points, in the settings I indicated "to display the name of points always." But after importing the .kmz file from google maps the point name is not displayed. If in the settings of a point, change the icon to one of the standard (locus or garmin), then the name of the point appears. Can you fix it? thanks!

Replies (1)

1

Good day Aleksandr,

attached file is your own creation?

As I see, in the file are defined Styles for placemarks, but! <labelStyle> has incorrectly defined <scale> to value "0". Please check official documentation here and also check <scale> values at start of your file. Value "0" say that label will scale to 0% so it is displayed, but has size "0". Locus Map does not use 100% of all possible features of KML, but this one is used.

If you change icon, these styles are reset to default values so labels are then visible.

Hope my explanation is clear, otherwise feel free to ask.

Menion
