Iconpack problem

Jelle Ruben shared this question 4 years ago
Answered

Hello,

I have made an own icon pack. It's works in Locus.

But somewhere I have an error. If I start Locus pro I get the message "file icon.zip not found".

If I looked at the list of my POI, I can see my own icons.

How or where can I find error and fix it ?


I know I have chance the name op the zip file.

Replies (7)

1

I found this ....

HTH

1

Mmh I see noting on the link.

ac919b71c44c202a5617061a20da18a8

1

I logged in here the first time for this exact same issue and it happened to be the very first post in the feed!


For me it happened when I added my own icon pack named Icons.zip and then later removed it. Then I added a zip file of icons named MyIcons.zip which are all available as custom icons now...

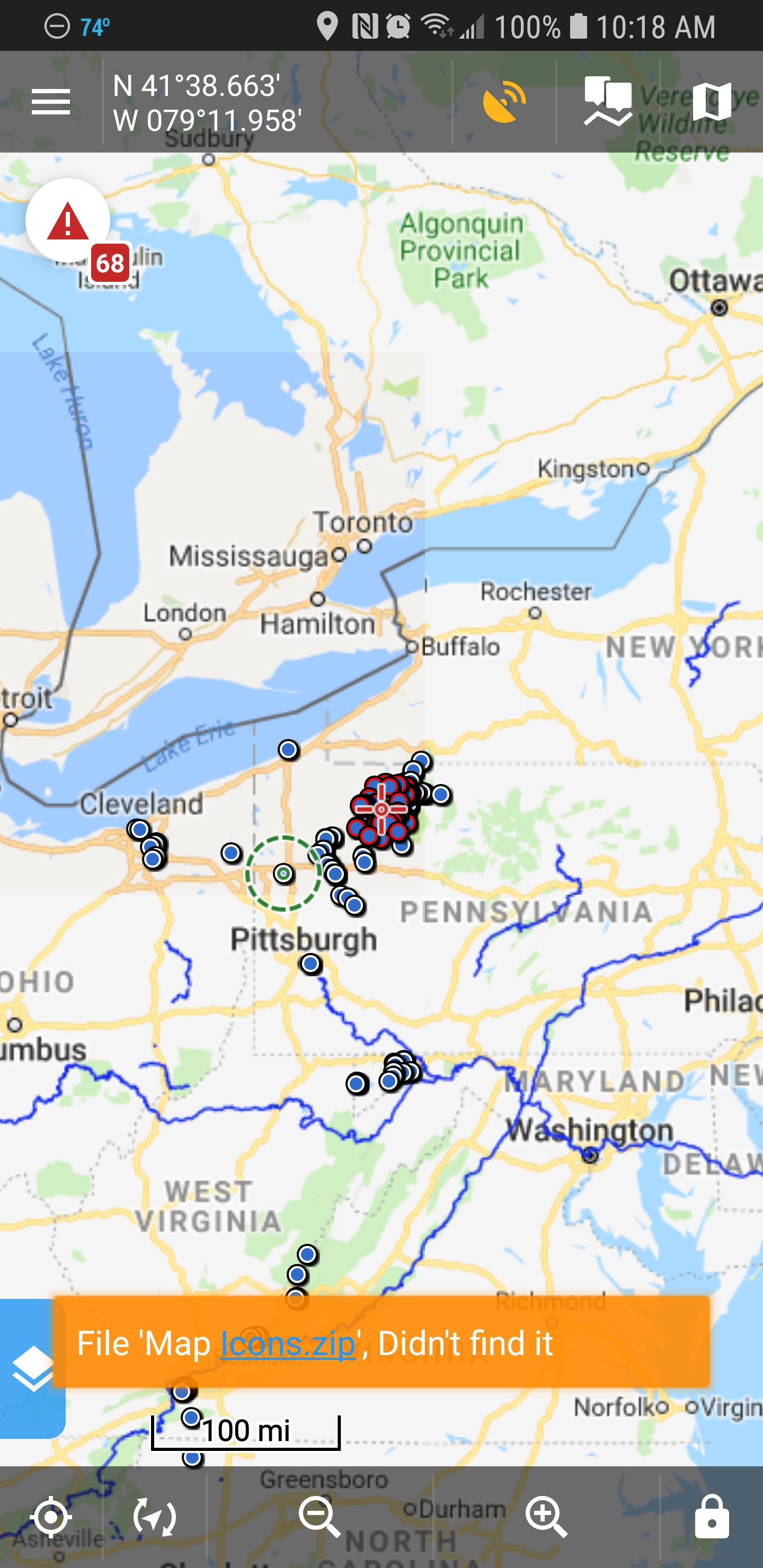

However every single time I start the app it flashes that "Cannot find Icons.zip" error at me.


Ive gone to the point of adding a zip file to the icons folder CALLED Icons.zip and STILL whenever I open the app I get an error message at the bottom saying "Can't find Icons.zip"


Can you guys fix this?

1

Hello,


I found the problem, it is not a problem of Locusmap.

I have read my POI file with a text editor , And see that I made a mistake. I have used two different icon packages.


<locus:icon>file:Icons.zip:fastfood_mcdonalds.png</locus:icon>
And


<locus:icon>file:Icon.zip:fastfood_mcdonalds.png</locus:icon>
You can see one file is Icons.zip and the other is Icon.zip (without s). I shall now check all of my file's.


EDIT: I can say the my problem is fixt..

1

I did check and my file names were not matching. I added an empty zip file into the icons folder named the same as what the error message was telling me it could not find.


That leads to another question. If a user adds a zip file full of icons and then removes it later, will it always trigger this message of "can't find FILENAME.zip"?

1

Are you looking the path in your gpx file too? If you pack names Icon.zip, then must (for example) the path in the gpx file <locus:icon>file:Icon.zip:fastfood_mcdonalds.png</locus:icon>

1

I think you know to exprt a list to a GPX file. So you have a GPX file


If you then open the GPX file with a text editor. You see your waypont in a list.

for example:


</wpt>

<wpt lat="47.267893" lon="13.496445">

<ele>1287.00</ele>

<time>2017-08-21T11:11:13.000Z</time>

<name>Pitstop</name>

<link href="http://www.garmin.com">

</link>

<sym>restaurant</sym>

<extensions>

<locus:icon>file:Icon.zip:restaurant.png</locus:icon>

</extensions>

</wpt>


The row with <locus:icon>file:Icon.zip:restaurant.png</locus:icon> must be right to your pack

(look at file:Icon.zip)


This was my problem.

1

Cool I'll try seeing if there are any links to that icon pack sitting in a gpx export of all my markers and go from there.
