Importing Pictures into the app
Answered
I have loaded waypoints via KML/KMZ
On Google Maps they have images, but when uploading these to Locus the pictures will only show when I'm online
After some research it turns out the KMZ should contain the picture files, but don't
Is there a way to bulk upload pictures to the app, so they show on the pins, or in attachments? I have roughly 200 pins that need pictures adding to them
The same question
Good day Ben,
no such feature is currently possible with Locus Map.
May you please share with me some small sample file? I currently do not know if images are included in description or by any other method.
Currently similar tool you wants (pre-downloading of images) exists for geocaches, but it does not work for basic points. Till now, it wasn't needed to be true.
I'm worried that improving Locus to be able to do this, it will need quite a lot of time and from my point of view, it does not worth it. Anyway I would rather firstly have in hands any file for test, thanks.
Good day Ben,
no such feature is currently possible with Locus Map.
May you please share with me some small sample file? I currently do not know if images are included in description or by any other method.
Currently similar tool you wants (pre-downloading of images) exists for geocaches, but it does not work for basic points. Till now, it wasn't needed to be true.
I'm worried that improving Locus to be able to do this, it will need quite a lot of time and from my point of view, it does not worth it. Anyway I would rather firstly have in hands any file for test, thanks.
They're in the KMZ that you used for my altitude query.
They're in the KMZ that you used for my altitude query.
Menion, reading this post made me think - http://help.locusmap.eu/topic/pattern-for-the-name-of-attachments-in-the-points-of-a-track
Would it be possible to name the pictures file outside the app and then drop them into the media folder?
I've added an attachment by photo, named P_Wainhope_MBA_20170112_230244
I've copied another photo into the Locus/data/media/photo
And then renamed it to P_Wainhope_MBA_20170112_230245
But when I go out of the app and back in, it does not show on the attachment screen.
Does another file need to be updated to make this show on the attachments?
Though, storing the pictures generated by the KMZ would be the ideal given there are so many
Menion, reading this post made me think - http://help.locusmap.eu/topic/pattern-for-the-name-of-attachments-in-the-points-of-a-track
Would it be possible to name the pictures file outside the app and then drop them into the media folder?
I've added an attachment by photo, named P_Wainhope_MBA_20170112_230244
I've copied another photo into the Locus/data/media/photo
And then renamed it to P_Wainhope_MBA_20170112_230245
But when I go out of the app and back in, it does not show on the attachment screen.
Does another file need to be updated to make this show on the attachments?
Though, storing the pictures generated by the KMZ would be the ideal given there are so many
Good day Ben,
this will be more complicated. Indeed. Images are in description of points as links to images stored on web. To access them offline, function like already exists for geocaches, should be needed. Anyway I do not plan this "offlinizer" tool for basic points, because I believe that it's usage will be really low.
Using photos from media/photo automatically is also not possible. Attachments needs to be added over "attachment" tab of every point.
Alternative should be this method (if you are able to manually edit kml file)
- place images into directory Locus/data/import, so for example Locus/data/import/my_photos/photo01.jpg
- in description of point in kml, image should be then added as
Then it should work as expected. Anyway it's needed to edit KML file to achieve this.
Currently I'm not aware about any more simple solution.
Good day Ben,
this will be more complicated. Indeed. Images are in description of points as links to images stored on web. To access them offline, function like already exists for geocaches, should be needed. Anyway I do not plan this "offlinizer" tool for basic points, because I believe that it's usage will be really low.
Using photos from media/photo automatically is also not possible. Attachments needs to be added over "attachment" tab of every point.
Alternative should be this method (if you are able to manually edit kml file)
- place images into directory Locus/data/import, so for example Locus/data/import/my_photos/photo01.jpg
- in description of point in kml, image should be then added as
Then it should work as expected. Anyway it's needed to edit KML file to achieve this.
Currently I'm not aware about any more simple solution.
Is there a way to download the files from the kmz and have locus reference back to the downloaded images? The photos are scaled down so only about 50kb each
Is there a way to download the files from the kmz and have locus reference back to the downloaded images? The photos are scaled down so only about 50kb each
To be true Ben, I've never needed something like this. In Locus this is not possible, but if exists any program for windows/linux, I'm sorry, but I really do not know.
To be true Ben, I've never needed something like this. In Locus this is not possible, but if exists any program for windows/linux, I'm sorry, but I really do not know.
Ok, I'm going to try editing the KML as you suggested. Due to the number of pictures originally I'm just going to stick with one main picture.
Are the folders after Locus/data/import/ going to be my custom ones?
Ok, I'm going to try editing the KML as you suggested. Due to the number of pictures originally I'm just going to stick with one main picture.
Are the folders after Locus/data/import/ going to be my custom ones?
Yes, they are. Sub folders in this data/import directory are created automatically by Locus when some files with attachments are imported anyway feel free to create your own and point pictures here.
I'm trying to suggest some better solution, anyway you have a wrong guy here, because I never needed to do something like this even it make absolute sense.
Yes, they are. Sub folders in this data/import directory are created automatically by Locus when some files with attachments are imported anyway feel free to create your own and point pictures here.
I'm trying to suggest some better solution, anyway you have a wrong guy here, because I never needed to do something like this even it make absolute sense.
Hello Ben
did you have sucess to make pictures offline available with your kmz?
I´m also interested in this task and so i spend little time on it, using your file...
It´s not 100%, 5 pictures (download error) and your videos are missing in following kmz
https://www.dropbox.com/s/a6psq3qitxf4eli/offlineMBA.kmz?dl=0
if you have question depending to this thread ask here, otherwise you can contact me by mail
balloni(a)arcor.de
nice winter evening
Wolfgang
PS: to built further POI projects on PC to add photos with and without geocode, i recommend
http://www.geosetter.de/en/
Hello Ben
did you have sucess to make pictures offline available with your kmz?
I´m also interested in this task and so i spend little time on it, using your file...
It´s not 100%, 5 pictures (download error) and your videos are missing in following kmz
https://www.dropbox.com/s/a6psq3qitxf4eli/offlineMBA.kmz?dl=0
if you have question depending to this thread ask here, otherwise you can contact me by mail
balloni(a)arcor.de
nice winter evening
Wolfgang
PS: to built further POI projects on PC to add photos with and without geocode, i recommend
http://www.geosetter.de/en/
Thanks for that Balloni55, I'm going to try it now
How did you make the KMZ? did you have to download all the photos manually?
Thanks for that Balloni55, I'm going to try it now
How did you make the KMZ? did you have to download all the photos manually?
That doesn't work, pictures still load as blank when no data connection
That doesn't work, pictures still load as blank when no data connection
Hello Ben
My workflow in short:
- creat a new folder with subfolder "images" e.g. on desktop
- unzip your kmz file
- open kml with a editor, e.g. "notepad+" and store it as .txt
- using Firefox on PC with addon "DownThemAll" i´ve downloaded all pictures automaticly, using the .txt file (all URLs can be detected) and stored them in folder "images".
Important: downloaded files naming must be idetically your "online picture files".
e.g. lh4.googleusercontent.com-EHdTNo2whEIQQQVcI13JZiN94kluJg8rdtK1i1SmlllAx-BER2dCyuPV0p-wurU5orBEzuZwl4qGBluF6eisP3cURJJsRtLH5tzPR_-A1CFTtkv4EcjT6eNEm_M95qq9zQ.png
So i´ve used setting inside DownThemAll *url**flatcurl*.*ext*
- open your kml file with "notepad+" use search& rename all <img src="https:// to <img src="images/ and store it as .kml in before created folder, beside the image folder
- pack this .kml together with the image folder to .zip and next rename it to .kmz
I hope it is understandable for you ;-)

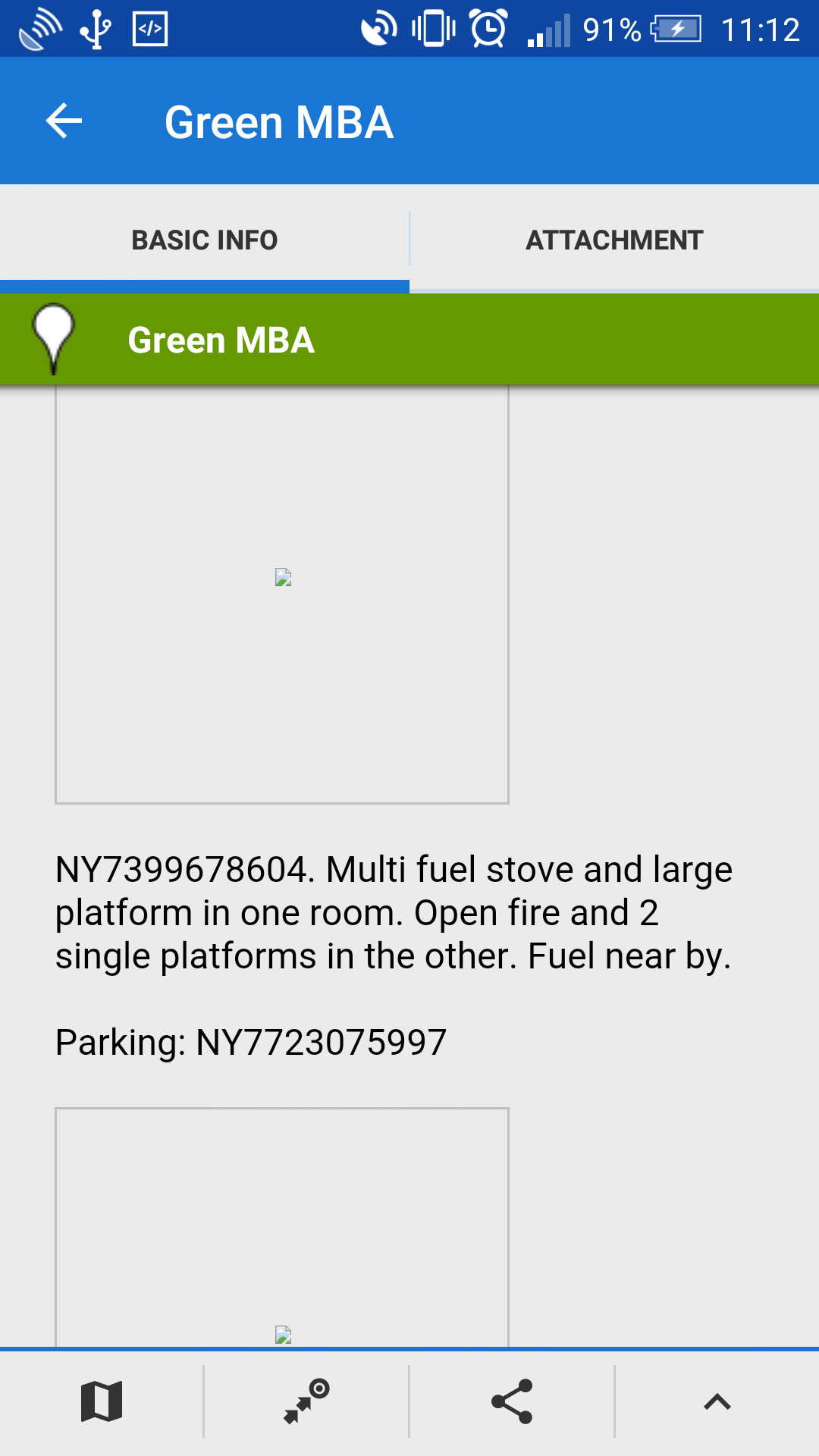

EDIT: for me in "Green MBA " 3 pictures are displayed, whats the download size of downloaded file from my Dropbox?
Wolfgang
Hello Ben
My workflow in short:
- creat a new folder with subfolder "images" e.g. on desktop
- unzip your kmz file
- open kml with a editor, e.g. "notepad+" and store it as .txt
- using Firefox on PC with addon "DownThemAll" i´ve downloaded all pictures automaticly, using the .txt file (all URLs can be detected) and stored them in folder "images".
Important: downloaded files naming must be idetically your "online picture files".
e.g. lh4.googleusercontent.com-EHdTNo2whEIQQQVcI13JZiN94kluJg8rdtK1i1SmlllAx-BER2dCyuPV0p-wurU5orBEzuZwl4qGBluF6eisP3cURJJsRtLH5tzPR_-A1CFTtkv4EcjT6eNEm_M95qq9zQ.png
So i´ve used setting inside DownThemAll *url**flatcurl*.*ext*
- open your kml file with "notepad+" use search& rename all <img src="https:// to <img src="images/ and store it as .kml in before created folder, beside the image folder
- pack this .kml together with the image folder to .zip and next rename it to .kmz
I hope it is understandable for you ;-)
EDIT: for me in "Green MBA " 3 pictures are displayed, whats the download size of downloaded file from my Dropbox?
Wolfgang
What do you mean by GE offline?
What do you mean by GE offline?
sorry > GoogleEarth
sorry > GoogleEarth
