Wrong elevation gain computation in planner

Daniele Orlandi shared this problem 8 days ago
Not processed

Hello,


It often happens that the elevation gain computed by the planner is significantly overestimated. The same track saved and opened in the app outputs a more reasonable elevation gain.

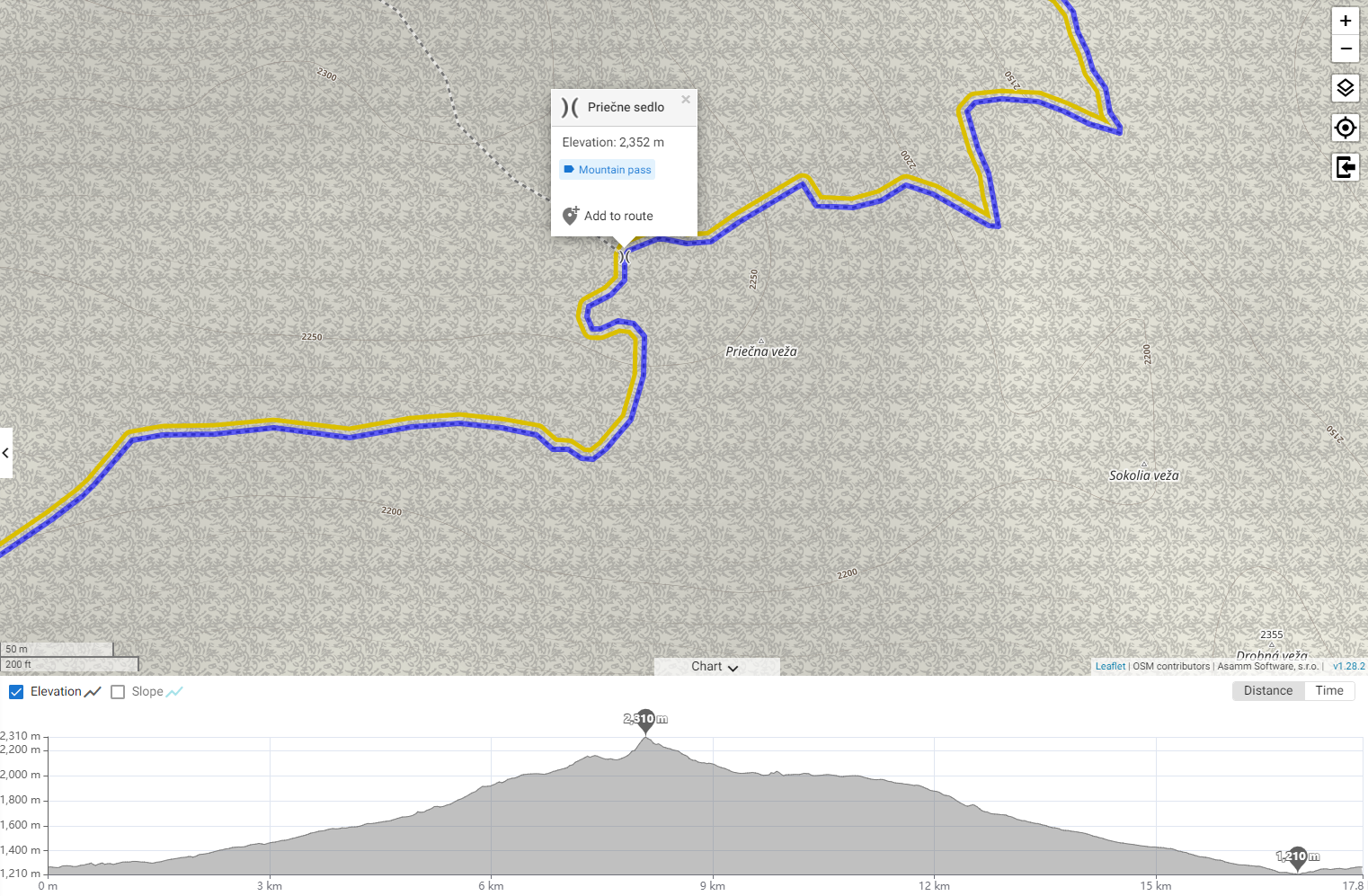

For example, this track:


https://web.locusmap.app/en/?shared_track=NjVjNTNjZWUtNWUxOS00ODIxLWE0MDgtN2YwNmMxOWM1MTAzOjI5ZmY2ODhlLTUwZDgtNDk4Ni1hOTAxLTRmZjYyYzRhYjc4Nw..


Gives 1962 m of elevation gain in the planner and 1614 m in the app.

Replies (1)

1

This is true and still an issue which should be improved. In contrast to the app, Web Planner is not applying an attenuation filter to smooth virtual vertical zig-zags of the track. Just by applying such a filter, elevation gain will get realistic values

Btw: there are already threads to the same issue:

https://help.locusmap.eu/topic/28145-flatten-elevation

https://help.locusmap.eu/topic/28144-different-elevation-gains-on-web-app-vs-android-app

https://help.locusmap.eu/topic/27890-incorrect-elevation-data-in-planner
