Not a good first try at using Locus mapping

I already had Brouter installed on my phone along with Locus so assume this was being used for the routing along my defined track.

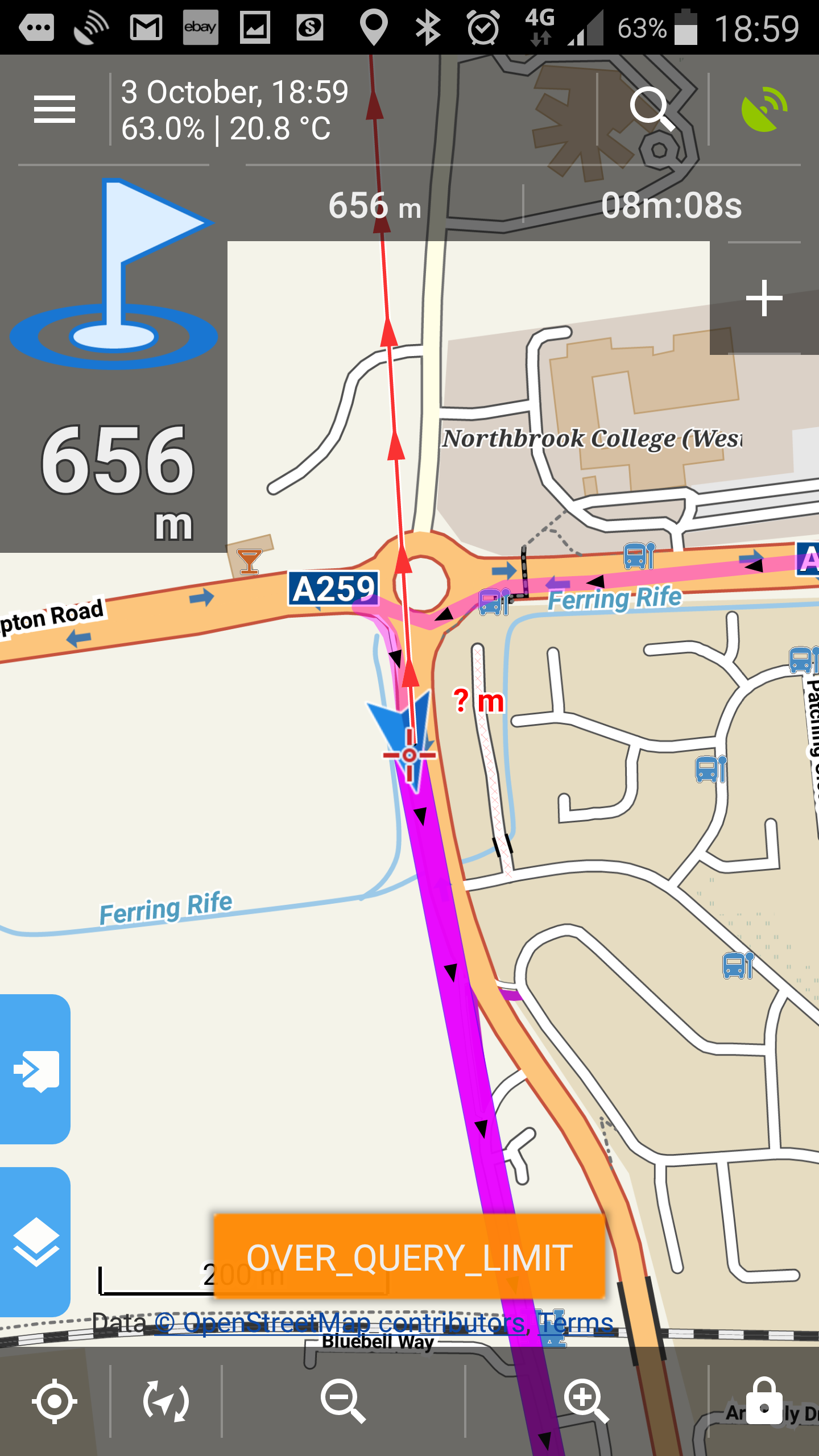

Do you know or do you assume ? BRouter does not generate OVER QUERY LIMIT. Brouter do must be explicitly set in Locus Navigation config to be used,

If you have BRouter installed, I do not see why you want your routes to be generated by Google maps.

Hi Fergus,

MapQuest is set as the default navigation data source - it works online and no additional app must be installed. If you want to use BRouter, set it as your navigation data source in settings >navigation > navigation data source.

• Whereas BRouter just ....well
  to be honest I'm a little confused what Brouter actually does but I
  presume it creates the gpx files from what the user draws on the map
  within the Locus map??

Locus can use BRouter by 4way, if I remember correctly.

1/ Brouter can be set in Locus navigation configuration as 3rd party offline routing service, similarly as other online servoces like Mapquest. For defines start, destination and optionally 2 viapoints it calculates a bicycle route, according to chosen BRouter routing profile.

2/ The user can define in Locus a route manually, and Locus call Brouter routing between each 2 points of the route.

3/ the user can in locus define a special waypoints(favourites) called "from" , "to", optionally "via1" .. "via9" and then launch the BRouter application manually. Brouter read the BRoute waypoinst DB and takes those points as implicitly defined route. It then generates the GPX file, based on the BRouter profile the user had manually chosen. The user imports GPX to Locus and set Locus to navigate along the route, that already contains turning navigation hints.

4/ The user runs directly Brouter and choses any waypoints from the Locus point DB to define the route. The rest is as at 3/.

• So Locus takes a gpx file displays it and creates navigational
  instruction for e.g. a cyclist, driver, walker i.e. turn left at next
  junction, take 3rd exit at next roundabout etc.

MapQuest and BRoutes generates navigation instructions data as a part of the route data, passed to Locus either via API interface, aither as a GPX file.

But it is Locus what creates the pictogram or voice navigation hints, using the navigation instruction data of the route. If such data are not present, it creates the hinst according the route shape, as a kind of fallback.

1. Locus creates navigation commands just according to the shape of the chain.

So it wont' recognise roundabouts or junctions since as you said it is following the shape of the chain.

- Yes, speaking about IMPORTED routes.

1. If you used routing inside Locus ("Navigate to" function) that would generate the route from navigation data, then you would get proper navigation commands including roundabout exits.

But you just said Locus only follows the shape of the chain. So what is interpreting this chain and recognising the roundabouts, junctions etc?

- Locus creates commands based on the shape of the line only in case of IMPORTED routes. If you choose "Navigate to" option, Locus triggers an available routing engine (MapQuest, BRouter...) to calculate the route from routing data that consist of information about nods, junctions, roundabouts etc. - therefore you get proper navigation commands.

1. MapQuest online router had some issues on Saturday - it way okay on Sunday

I was actually using it yesterday, Monday. Huh? Why am I using MapQuest thought Brouter was set as my default router??

We were informed MapQuest was available on Sunday already so probably it was not as you say... MapQuest is default router in Locus. If you install BRouter, you have to replace MapQuest by it manually in settings > navigation > navigation data source.

- Locus creates commands based on the shape of the line only in case of IMPORTED routes.

Okay so if instead of importing a route, I manually created a route within Locus. Locus will be able to recogise roundabouts, junctions etc and give proper instructions otherwise if I import a route it won't be able to do this as it is simply following the shape of the route. Is this correct?

Trying to manually create a route on a small screen is a pain. I've not used the brouter web client but if I did to draw a route on the PC using the brouter client then would it work as well as a route created within Locus as regards giving proper instruction regarding roundabout exits, junctions etc.

Manual creation of the route in the Locus does not ensure generation of road network aware navigation intructions. The route must be calculated by the routing service from provided start-(via)-destination points.

OTOH, imported route may contains navigation instruction data, if generated by instruction aware service in format Locus expects. ( e.g. GPX import of Brouter generated route )

Brouter web client will generate navigation instruction, if you modify

1. assign turnInstructionMode = 1 # 0=none, 1=auto-choose, 2=locus-style, 3=osmand-style

to value 1. The reason is, BRouter application at default settings detects, which of BRouter aware application you are using. But this does not work for the BRouter web, as it cannot guess the target application. so you have to set the Locus explicitly.

Okay have used web based Brouter to generate a gpx with the following settings:

assign consider_elevation = true # set to false to ignore elevation in routing

assign allow_steps = true # set to false to disallow steps

assign allow_ferries = false # set to false to disallow ferries

assign ignore_cycleroutes = false # set to true for better elevation results

assign stick_to_cycleroutes = true # set to true to just follow cycleroutes

assign avoid_unsafe = true # set to true to avoid standard highways

assign turnInstructionMode = 2 # 0=none, 1=auto-choose, 2=locus-style, 3=osmand-style

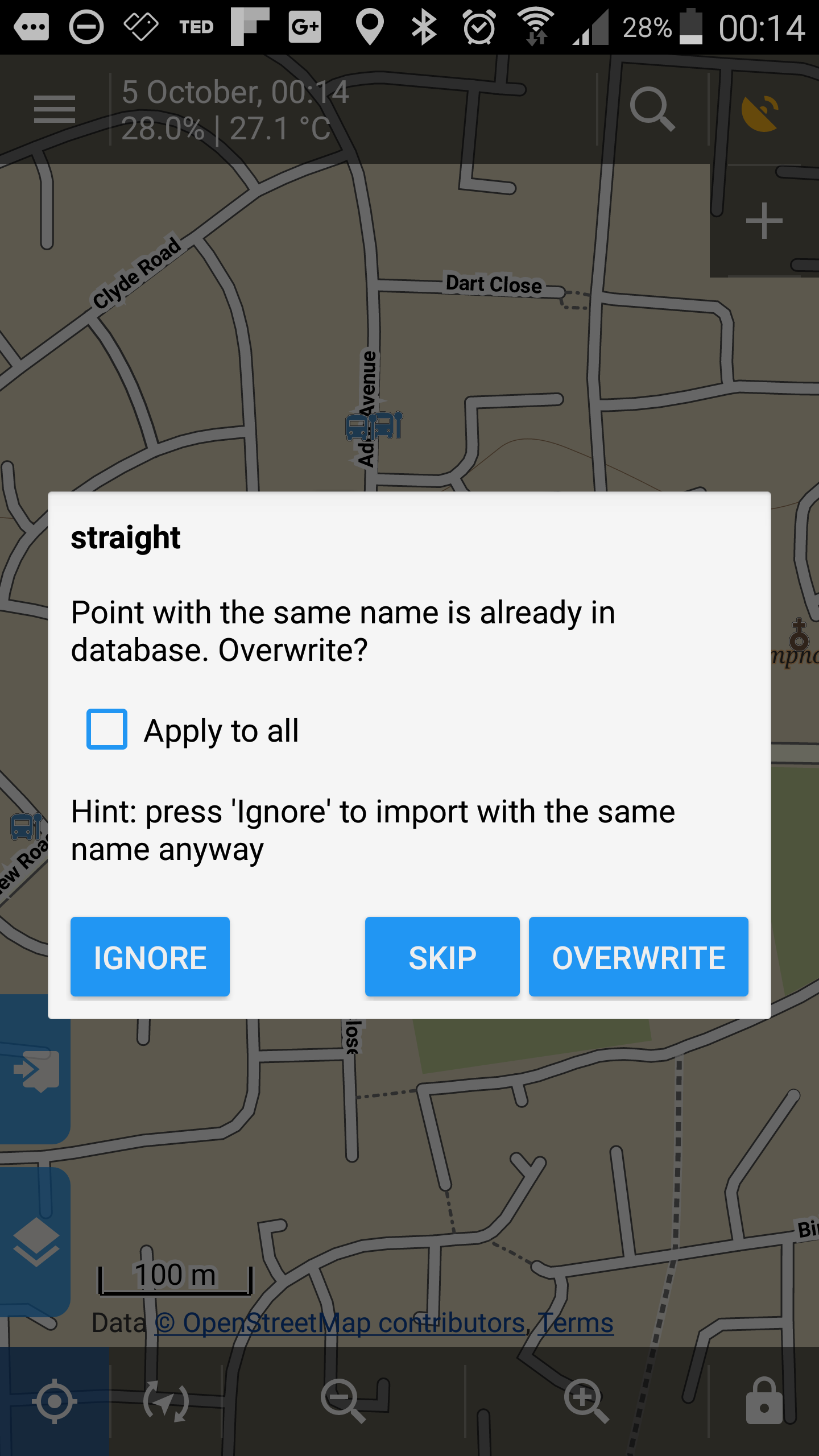

When I tried to import the route I got a message, see screenshot attached. Originally I selected ignore all and this produced something like 200 points, no track. A second attempt created the track when I chose overwrite, apply to all.

I not even going to bother asking why I got this.

Unfortunately looking at the track itinerary produced it's still got woeful recognition of what are straightforward left/right hand turns and roundabouts. I cannot rely on this for navigation on a cycling trip. Is this the best I can expect from this software? Very disappointed :(

Is there no way of manually creating a route where navigational instruction data is properly produced instead of this rubbish with half lefts and half rights.

You got this error msg because you have tried to import navigation hints in the route as ordinary waypoints.

Try once more, and during the import, check in the option "merge waypoints with the track".

• Do I have to map out the route manually going the other way???

The magic of navigation is you do not have to create the route manually. As, if the used BRouter profile follows your preferences, it is able to guess the most points for you. So you ( more or less ) explicitly assign just the real viapoints that Brouter cannot guess.

Hi LIbor, Thanks for anwering but how does this answer my question regarding reversing a copy (a route I've amended and am perfectly happy with) of a route?

Can we address the reason for this..

1. The problem is when I copy and reverse the route I'm back to square one and a lot of the instructional data is lost again??

Incidentally I would never go by Brouter 100% no matter how I set up the profile. I've seen some of the decisions it makes and I'm not impressed having tested it on a route I do regularly. A lot of manual intervention is still needed.

The question is, if you are going to use the route for the Guidance, or the Navigation.

For the former, Locus is happy with it and even directly support it. But guidance does not use - ( AFAIK as I use it seldom ) - navigation instructions.

For the latter, Navigations always takes route as oriented. thr route generation is generally asymmetrical ( the optimal return route may differ ) and navigational instructions are always oriented oneway. So calculation of the return route - by whatever online/ofline service - is always done separately.

I have said "if the used BRouter profile follows your preferences". Please, be slow in statements about BRouter abilities, as they are more hissen thanabilities of Locus. :-). I do not correct my BRouter profiles often, if I use the proper profile.

https://github.com/poutnikl/Brouter-profiles/wiki

1. For the latter, Navigations always takes route as oriented. thr route generation is generally asymmetrical ( the optimal return route may differ ) and navigational instructions are always oriented oneway. So calculation of the return route - by whatever online/ofline service - is always done separately.

Look I've no idea what you are talking about here. All I know is Locus offers me the ability to reverse a route. It's as simple as that and I take it at face value. AFAIC this functionality simply does not work as you are told

"Oh guess what you can reverse your route so you can find your way back, What you need to do is copy route in question and reverse".

I personally expect to get the correct navigational route instructions for my return journey. If this is not going to be the case then why present it as such in the documentation with no qualifications whatsoever to new users. Frustrating!!

Well, it is said neither the Photoshop is a polished app that just works. It is said to be very powerful, but also complex. For many trivial task is better simple editor/editing viewer like Irfanview. For Locus it is similar. It is very powerful, but may have aslo some learning curve. Like the most of powerful tools.

I apologize if I got incorrect feelings your approach is 50/50 questions/complains.. :-). Let just suppose for now just thequestions. But, if you do not know Locus well yet, how do youknow it does not work how it should ?. You may either have not got to it yet, or Menion had just a different iopinion on the feature.

1. I apologize if I got incorrect feelings your approach is 50/50 questions/complains.. :-). Let just suppose for now just thequestions. But, if you do not know Locus well yet, how do youknow it does not work how it should ?. You may either have not got to it yet, or Menion had just a different iopinion on the feature.

I also apologise to yourself and Menion but my patience is getting frayed having spend too much time trying to achieve a single objective:

Manually create a route (I've used Locus, Brouter & cycle.travel) import route to Locus and do a single journey without errors persistently flashing up on screen and navigational instructions missing completely or partially.

May be this is an impossible quest but I so far have failed. Is it my fault I don't know?!

• I was tryin to get Brouter to find a route to a peak, no trails, no paths...<20° climb...just too realize Brouter was a bike engine. No luck, ofcourse.

There is no of course, there is just a lack of proper information.

Originally - yes - I was developed as a routing service for bicycles. But currently, the purpose depends solely on the used routing profile - that is a thing that Graphhopper does not offer.

And, if there are no trails, no paths, ( if I got it correctly ), then it was your fault using a routing engine of any kind, as they create routes along the OSM ways,... :-)

For more, you may want to check https://github.com/poutnikl/Brouter-profiles/wiki

@Libor: I have a lot of respect for you and has learned a lot by reading your wiki and posts in these forums :-)

But I understand the OP's claim of Locus has its "dark" sides.

Usercase #2

Can I get a "share my position"-icon on right panel? Just a one-click to open android share window? (I do not mean center screen/map) New users will try to dive deep into Locus settings to check if this is possible. This should be a default icon in right panel, but that's just my 5 cent..

Well, I agree Locus can be challenging for a new user. I was long time user of OSMAnd, thinking for several months Locus is too complicated. And I do not feel to be a general expert for Locus So I do understand the OP in this as well.

But I do not feel comfortable with OP personal approach to learn what he need to achieve his goal. It is hard to cooperate at such conditions.

As most of the stuff is Locus related, the Assam team is much more competent to address it then me. I do not want to say what is not true.

Thanks Libor will be having a look at this over the coming week when I've got time to study it properly and thanks for responding to my endless queries so quickly. I may not have said this before but Brouter is a pretty valuable tool so thanks again :)

Any other problems I think it better to start a new thread.

BTW Libor, Having been trying to learn Locus, Brouter and navigation concepts the last several days and I can't remember exactly but I think when I installed Brouter I also had to chose maping data for a user selected area. If I wanted to add to this how do I get back into this dialogue? I've tried but can't figure this out ??

turn BRouter on from your phone > select Download manager

Damn I'm sure I'd have tried this before and that option was't coming up. Honestly I must be going mad.

Sorry for the silly question.

1. - fast - along roads with smooth surface, as flat as possible - you can ride fast
2. - short - the distance is short no matter what the surface or elevation profile of the way to the target is

Hmm tbh this doesn't make a lot of sense.

Let me try an interpret this:

fast - you just want to do a fast ride on good quality roads and as flat as possible regardless of the detours you will need to take to achieve this.

short - you want as short a route as possible between 2 points regardless of elevation or quality of road surface.

On the face of it these profiles v.brief description in the documentation sound a bit daft and could do with elaboration as I'm sure they make complete sense if explained. Is there a more detailed explanation I'm missing somewhere, believe me I have looked?

I such a case you probably do not want the Navigation mode nor navigation hints, but the Guidance mode. So after preparation of your route by whatever way, you need to set the Guidance to be beeped at significant direction turn, or if you got off the track.

But BRouter navigation instructions are designed to warn you mostly just if you could get off the route. E.g. if you go along secondary road, that turns right, while 2 tertiaries go left and straight ahead, you are not notified to turn right. But you would be notified, if you are turning to lower class road way.

Fergus,

Locus already enables what you seek. Read http://www.locusmap.eu/the-best-setting-of-locus-bike-navigation/ - there are a few useful tips how to best set Locus for bike riding.

BUT.... I like the thick blue route line and navigational instructions top left of the screen (in navigation mode). I don't get this in Guidance mode as the routing line in Guidance mode is very hard to see and I can't find a way to make it easier to see.

I don't get it am I missing something here? I really don't get why you couldn't have an audible alert (beep) in navigation mode before a change in direction/turning. Guidance mode does not suit me for the reasons I've given above .

I've not used guidance mode yet, as when I looked at it at home it just didn't seem to suit my requirements but I will try it tomorrow

Fergus, have you read the part about the beep "voice" that can be set in navigation mode? Sound settings – voice navigation or TTS generated commands may not be audible on a bike – rattle of the equipment on rough surfaces, wind swishing around ears… And wearing earphones can be pretty dangerous. Beeping sounds are much better heard – either set the beeper on (1-10 beeps) or install Morse-beeping voice “Samuel” from Locus community (available here >>)

of course the "beeper" option is available in "guidance" mode, "Samuel" voice in Navigation mode. It has one advantage - the beep sound is different for left and right turns.

Okay so...

fast - you just want to do a fast ride on good quality roads and as flat as possible regardless of the detours you will need to take to achieve this.

short - you want as short a route as possible between 2 points regardless of elevation or quality of road surface.

When

Not necesserily. As both can be roadbike like, or both can be MTBlike. Or whatever like. With BRouter it is completely on you. Naming short and fast lost its original sense.

https://github.com/poutnikl/Brouter-profiles/wiki/Choosing-bicycle-profile

Hi Libor,

Going to start a new thread on this issue of profiles as this thread is dealing with too many topics.

Thanks

Fergus,

the new Locus 3.19 contains quite a vast array of profiles relating to BRouter, see http://www.locusmap.eu/news-version-3-19-0/. Maybe it'll do for your needs and you don't have to have your routes calculated externally.

1. I usually set to Short the profile I use if weather is fine and I am fresh, like Trekking-dry or MTB. I use for Fast the "homing" profiles as a kind of a fallback at bad weather or if I am tired, ljke Trekking-wet, or MTB-light, More can be seen at

Yea it's a bit confusing and profiles seem to imply meaning by the very name of the profile.

1. I usually set to Short the profile I use if weather is fine and I am fresh, like Trekking-dry or MTB. I use for Fast the "homing" profiles as a kind of a fallback at bad weather or if I am tired

That's completely counter-intuitive to me and confusing, sorry!!??

Will have a look at the github page you've linked to.

Yes, the profiles imply their usage by their name.

I have already written that Locus naming Fast/Short lost its originally meaning. It should be taken just as a hard coded name for the profile slot in BRouter context. Even the transportation mode is not mandatory.

I can map bike profiles to all 5 slots ( 2 car, 2 bike, 1 foot ). You can even rename the slots.

If you choose fastlike and shortlike profile for it. Or completely different profile. But Short does not mean much for bike or car navigation. IF a car was lead along horrible ways or a bike up and down across the hills, the user would not be pleased.

Hi Fergus, I suppose the better place is posting it here, in a separate thread, as it is can be reused by other users, browsing the Helpdesk, as more users come here.Or eventually extracted for Locus Docs/FAQa.

The GIthub issues are rather aimed for technical details, not necesserily related to Locus, able to confuse many users.
